ADDITIONAL DIMENSIONS
Minimum Space 60"
ADDITIONAL FEATURES
Optional- 1 5/8" D Perforated Cooking Pan(CS2XLPH)
Optional - 1 5/8" D Full Size Cooking Pan (CS2XLH)
Optional - 1 1/4" D Full Size Baking Tray(CS2LH)
1 Island Trim Included
1 - Griddle Plate
1 - Grease Tray
2 Large Broil Pans Included
Optional - Wok Ring (PWOKRINGHC)
Optional - Professional Griddle (PAGRIDDLE)
Optional - 7" Low Back Backguard (PA60WLBG)
Optional - Metallic Blue Knob Kit (PAKNOBLUWG)
Optional - Cutting Board (PA12CHPBLK)
Optional - Toekick (PA60WTKG)
Optional - 24" Griddle Cover (PA24CVRR)
Optional - LP Conversion Kit (PALPKITHW)
Optional - Wire Rack (CSRACKH)
Optional - 1 5/8" D Perforated Pan (CS1XLPH)
APPEARANCE
3 Door Design
QuickClean Base®
Pinhole & Panel Lighting Concepts
Professional Styling
Front Control Panel
Commercial Depth Design
Double Oven Design
Stainless Steel Cabinet
Stainless Steel Finish
Stainless Steel Handles
Viewing Windows in Doors

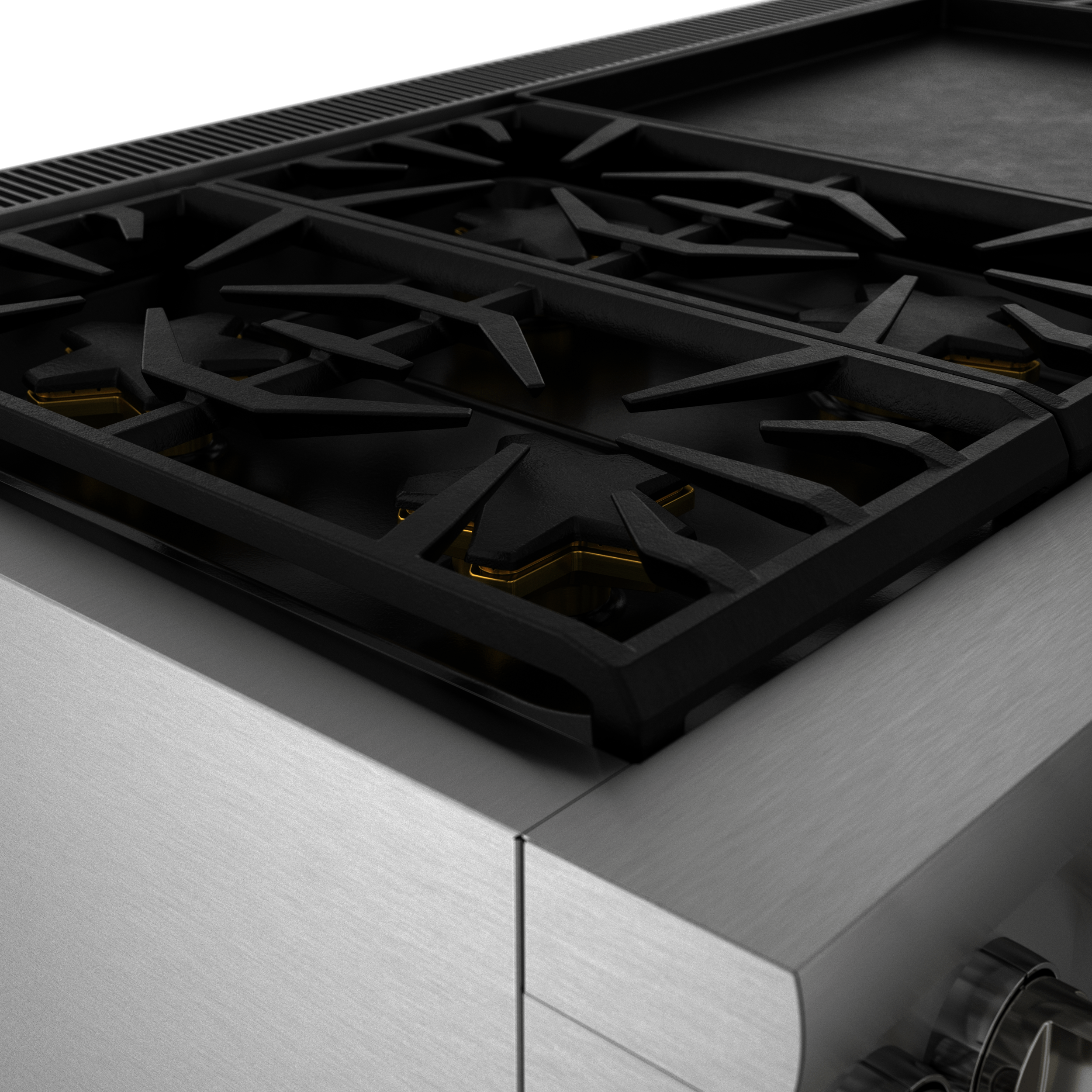

Continuous Cast Iron Grates
Easy to Clean Porcelain Cooktop Surface
CAPACITY
1.6 Cu Ft Oven Capacity - Small Oven
1.4 Cu Ft Capacity - Warming Drawer
5.7 Cu Ft Oven Capacity - Large Oven
CONTROLS
Signature Blue Indicator Lighting
Color TFT Interface
Electronic Thermostat Control
Electronic Oven Display / Timer
Large Oven Only - Wi-Fi Enabled Home Connect&trade
Restaurant Style Metal Knobs
CONVENIENCE FEATURES
Multi-Point Meat Probe
SoftClose® Hydraulic Hinges
Large Oven - Self-Clean
Pre-Heat Status w/ Audible Alert
Large Oven - 2 Interior Lights
Both Ovens - Sabbath Mode
Small Oven - 1 Interior Light
Star-K Kosher Certified
Warming Drawer - 550W Power
Warming Drawer - Low, Med, High
Warming Drawer - Holds up to Ten 11" Dinner Plates
Warming Drawer - Open Sides for Easy Access
COOKTOP FEATURES
ExtraLow® Burners
Pedestal Star® Burners
1 - XLO 18,000 BTU Burner
1 - 18,000 BTU Burner
1 - XLO/XHI 22,000 BTU Burner
1 - 24" 3,260W (6-Pass) Dual Zone Electric Griddle
1 - 12,500 BTU Burner
1 - XLO 15,000 BTU Burner
6 Total Sealed Star Burners, 24" Electric Griddle
1 - XHI / XLO 12,500 BTU Burner
DIMENSIONS
35 3/4" - 36 3/4" H x 27 7/8" D x 59 15/16" W
ENERGY/POWER
240V / 208V, 60Hz, 50 Amps
Dual Fuel Range
MANUFACTURERS WARRANTY
2 Year Limited Parts and Labor
OVEN FEATURES
Large Oven - Bake, Broil, Roast
Large Oven - Convection Bake
Large Oven - Convection Broil
Small Oven - Steam
Large Oven - Convection Roast
Small Oven - True Convection
Large Oven - True Convection
Small Oven - Slow Cook
Small Oven - Keep Warm
Small Oven - Defrost
Small Oven - Proof
Small Oven - Reheat
Small Oven - Steam & Convection Combination Oven
Large Oven - 3 Telescopic Racks
Large Oven - 2,000W Bake Element
Large Oven - 4,000W Broil Element
Large Oven - 2,750W Convection Power
Small Oven - 1,800W Steam Bowl Element
Small Oven - 2,750W Convection Power
